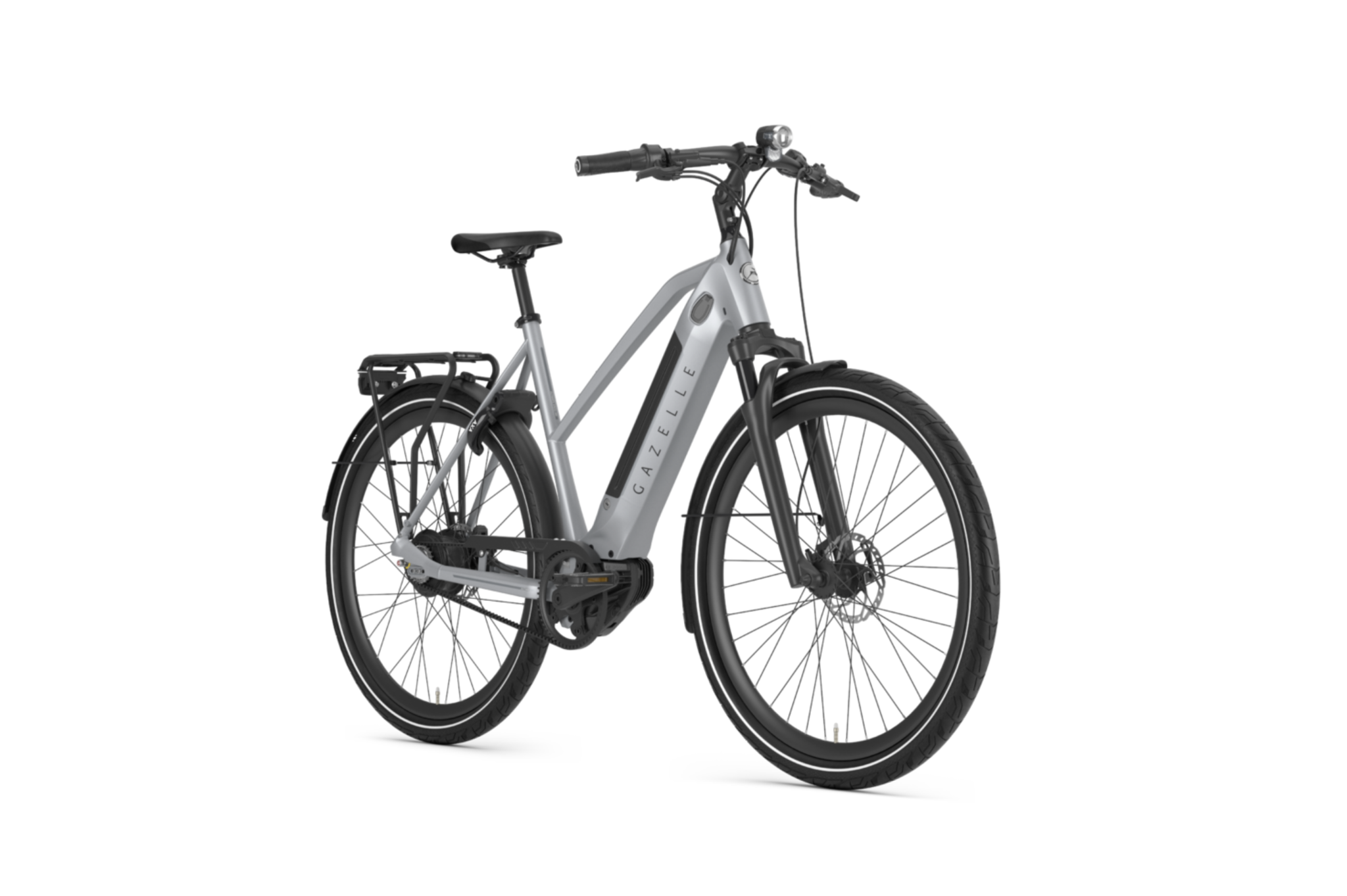

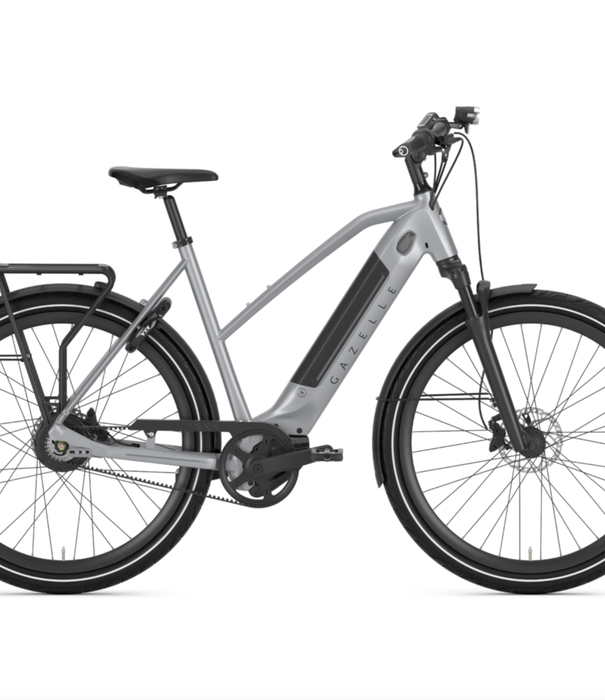

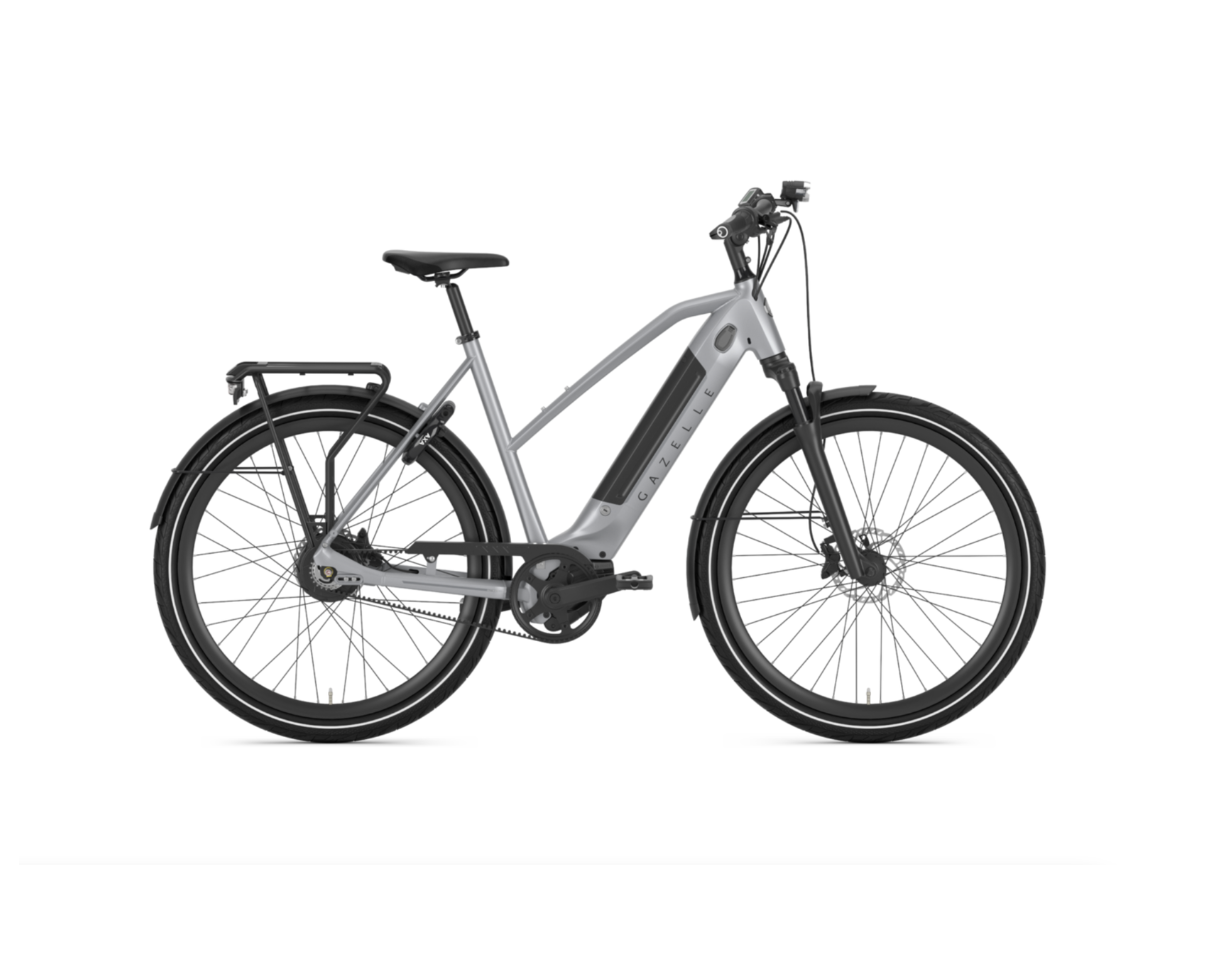

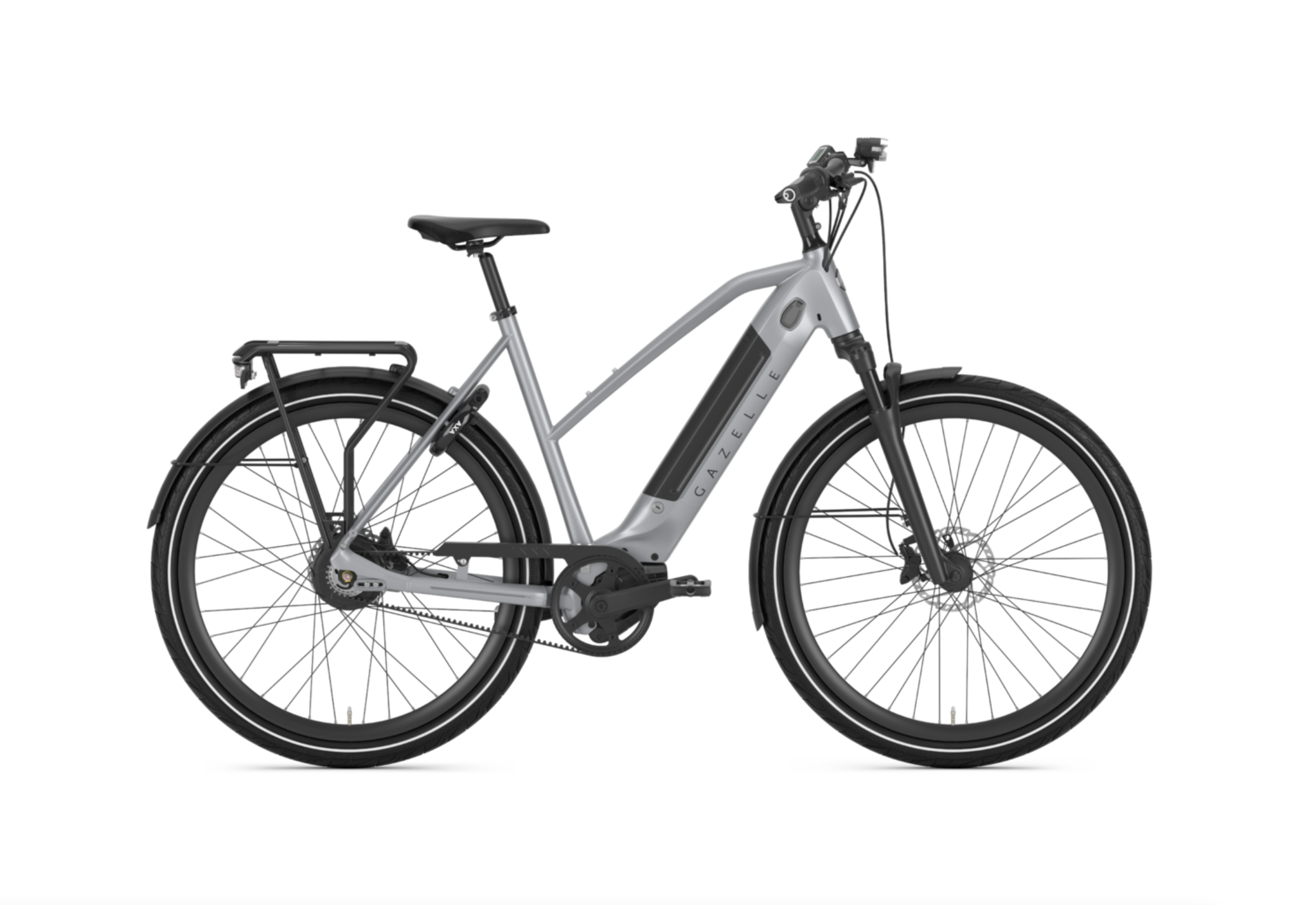

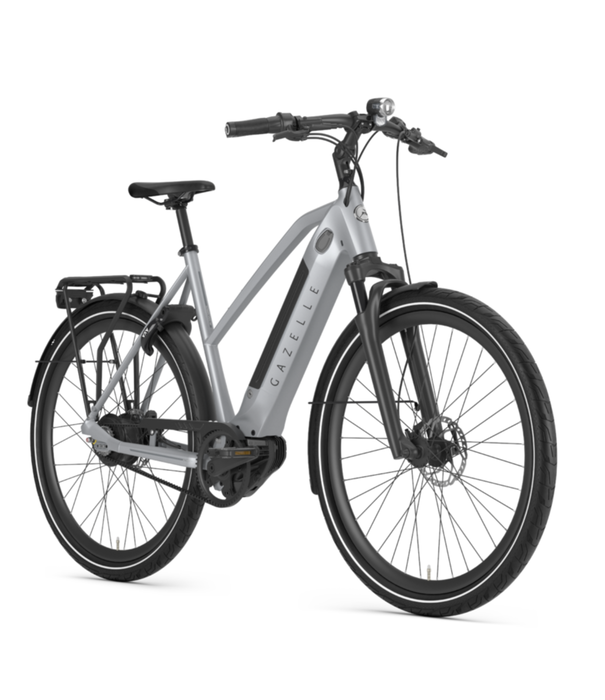

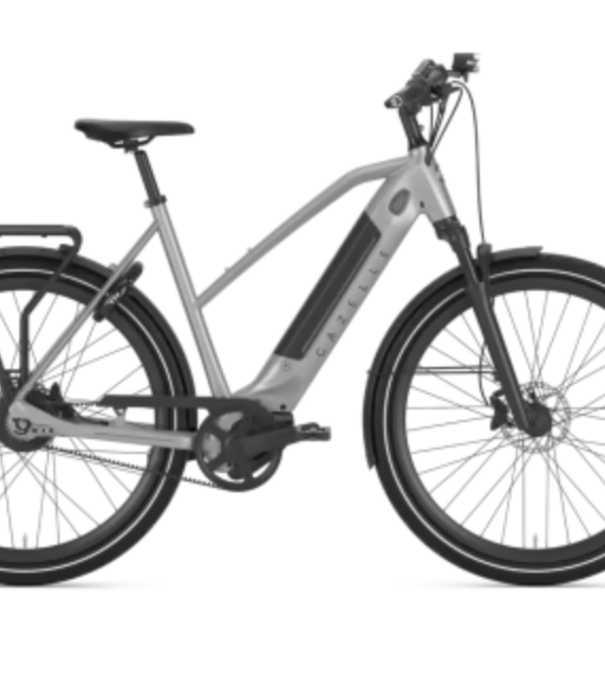

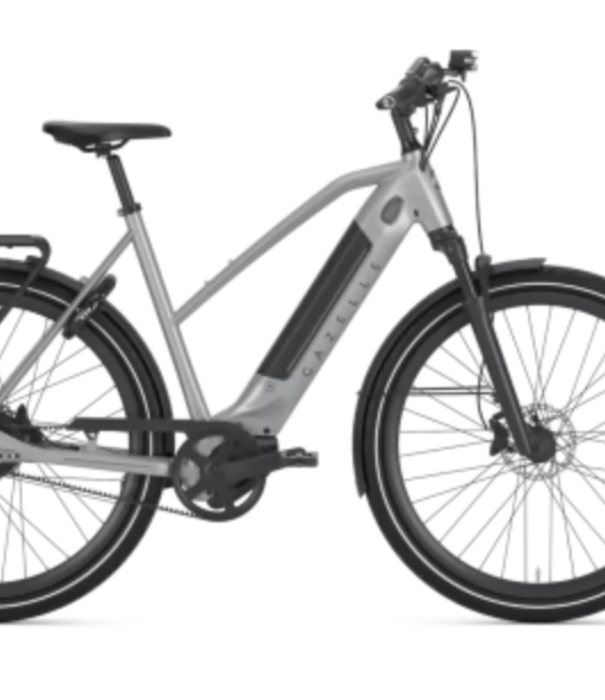

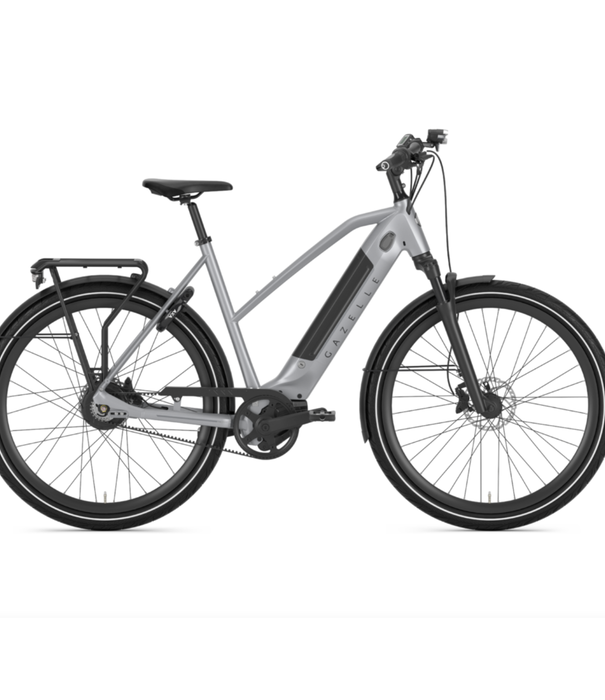

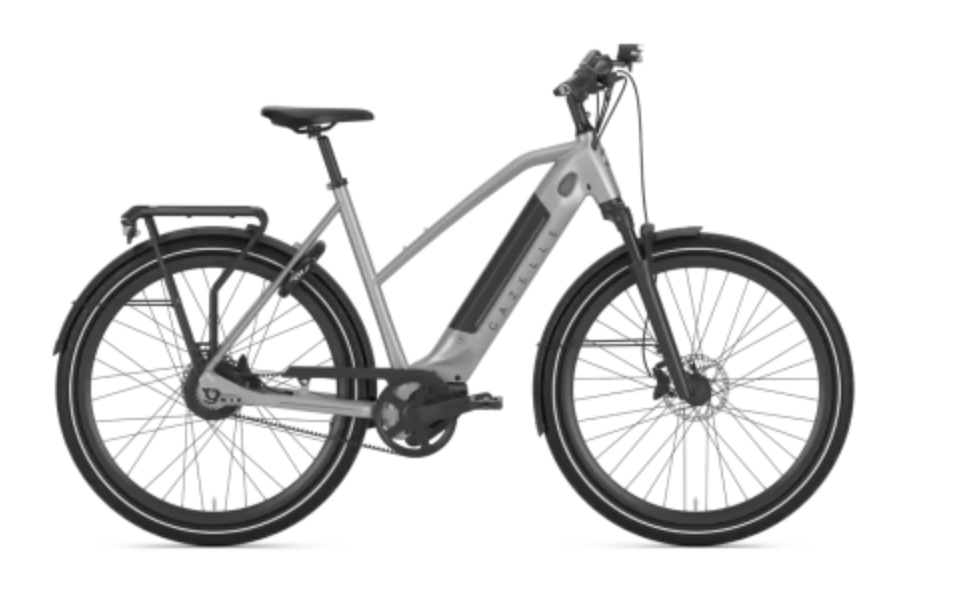

GAZELLE ULTIMATE C380+ HMB ENVIOLO

• Model Ultimate
• Weight in Lb. 55.6
• Colornameindustry grey
• SegmentElectric bicycles
• Sitting position Sporty

FRAME

• Frame shape High-step, Mid-step
• Size 46, 53, 57
• Frame descriptionStable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
• Frame materialAluminium
• Cabels integratedYes

FORK

• Fork materialAluminium
• Fork suspension typetelescopic
• Travel of suspension fork80 mm
• Front fork suspension lock-outYes

WHEELS

• Wheelsize 28"
• RimsRyde Dutch
• Spoke descriptionStainless steel, extra strong

TIRES

• TiresSchwalbe Energizer Plus
• Tire colorblack
• Tires puncture resistantYes

NUMBER OF GEARS

• Gear system descriptionEnviolo 380 Trekking Manual stepless gear system
• Gear type hub
• Gears Stepless
• Front chainwheel55
• Rear chainwheel22

BRAKES

• Brake FrontDisc brake with hydraulic control
• Brake RearDisc brake with hydraulic control
• Disc brake rotor size front180 mm
• Disc brake rotor size rear160 mm
• Brake system description frontShimano MT-420/Magura MT C4
• Brake system description rearShimano MT-420/Magura MT C4

HANDLEBAR

• Handlebar descriptionAluminium, slightly curved model
• Adjustable stemYes
• Grip typeErgon GP1-L, ergonomic
• GripsPlastic handlebar grips with ergonomic form for a better distribution of pressure on the hands

SADDLE

• SaddleSelle Royal Essenza Plus
• Seatpost descriptionFixed

FRONT LIGHT

• Light front descriptionLED headlamp, on/off switching via display
• Front light typeAxa Blue Line 50

ENGINE

• Ebike system short descriptionBosch
• Engine locationmid-drive motor
• Max speed (mph)Class 3 (28 mph)
• Torque 85
• Engine modelBosch Performance Line Speed (85 Nm)
• Ebike sensorspedal force sensor, rotation sensor, speed sensor

BATTERY

• Battery typeLi-ion
• Battery position Integrated into frame
• Battery replaceableYes
• Battery systemBosch
• Ebike charger description4 Ah

DISPLAY

• Amount of support levels4
• Display control unitYes
• Walk assistYes
• Display Model Bosch Purion LCD

GARANTIE

• Warranty frame10 years’ warranty
• Warranty fork5 years’ warranty
• Warranty paint5 years’ warranty
• Warranty other parts2 years’ warranty
• Warranty battery2 years’ warranty
• Warranty motor2 years’ warranty
• Warranty diplay2 years’ warranty

LOCK

• Lock descriptionRing lock
• Lock safety levelART ** certified
• Lock TypeAXA Defender

OTHER

• Chaincase descriptionAluminum
• Kickstand typedrop-down rear stand
• KickstandUrsus Mooi
• Chaincase typeChain guard

CARRIER

• Rear carrier descriptionGazelle commuter, aluminium
