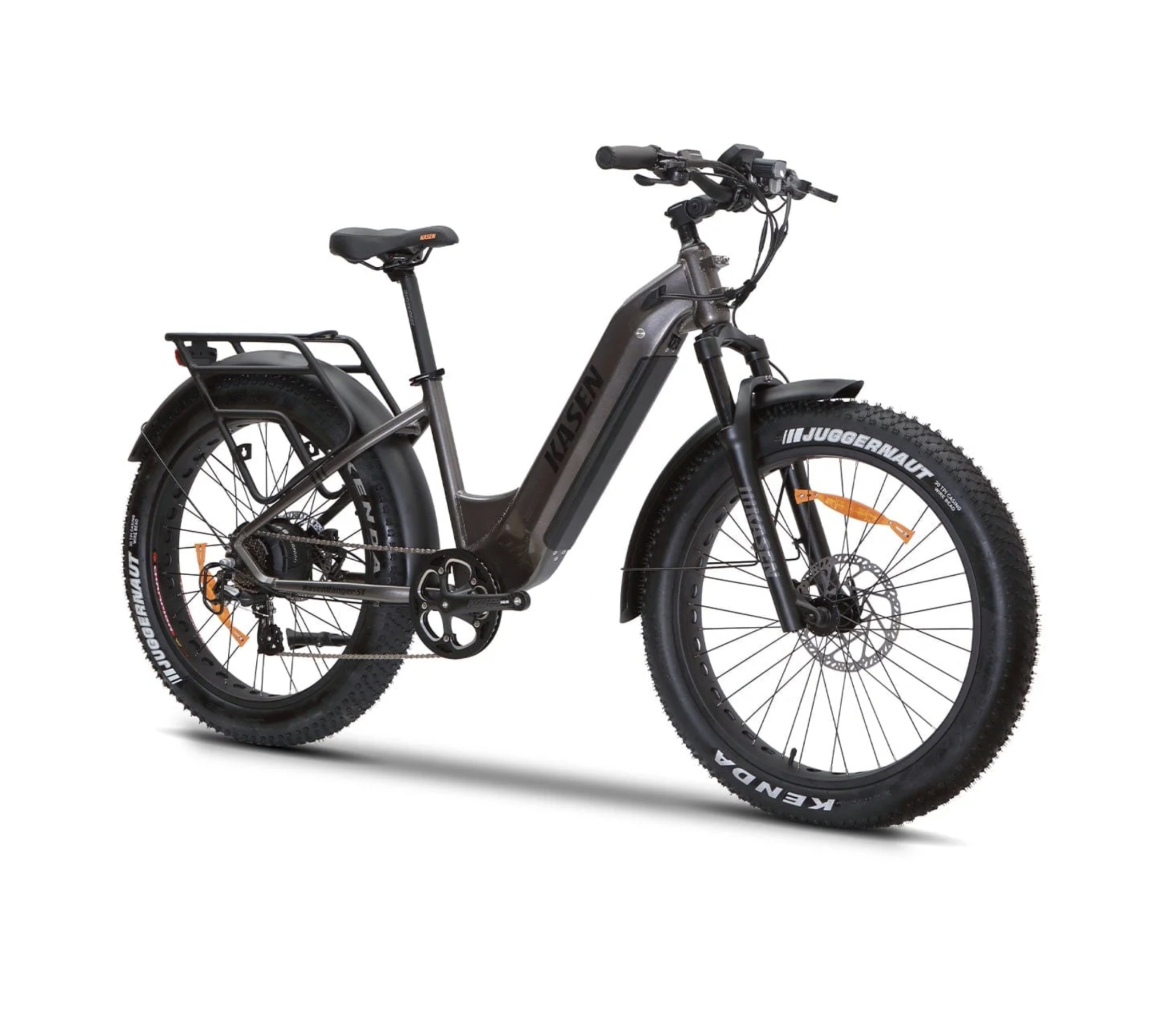

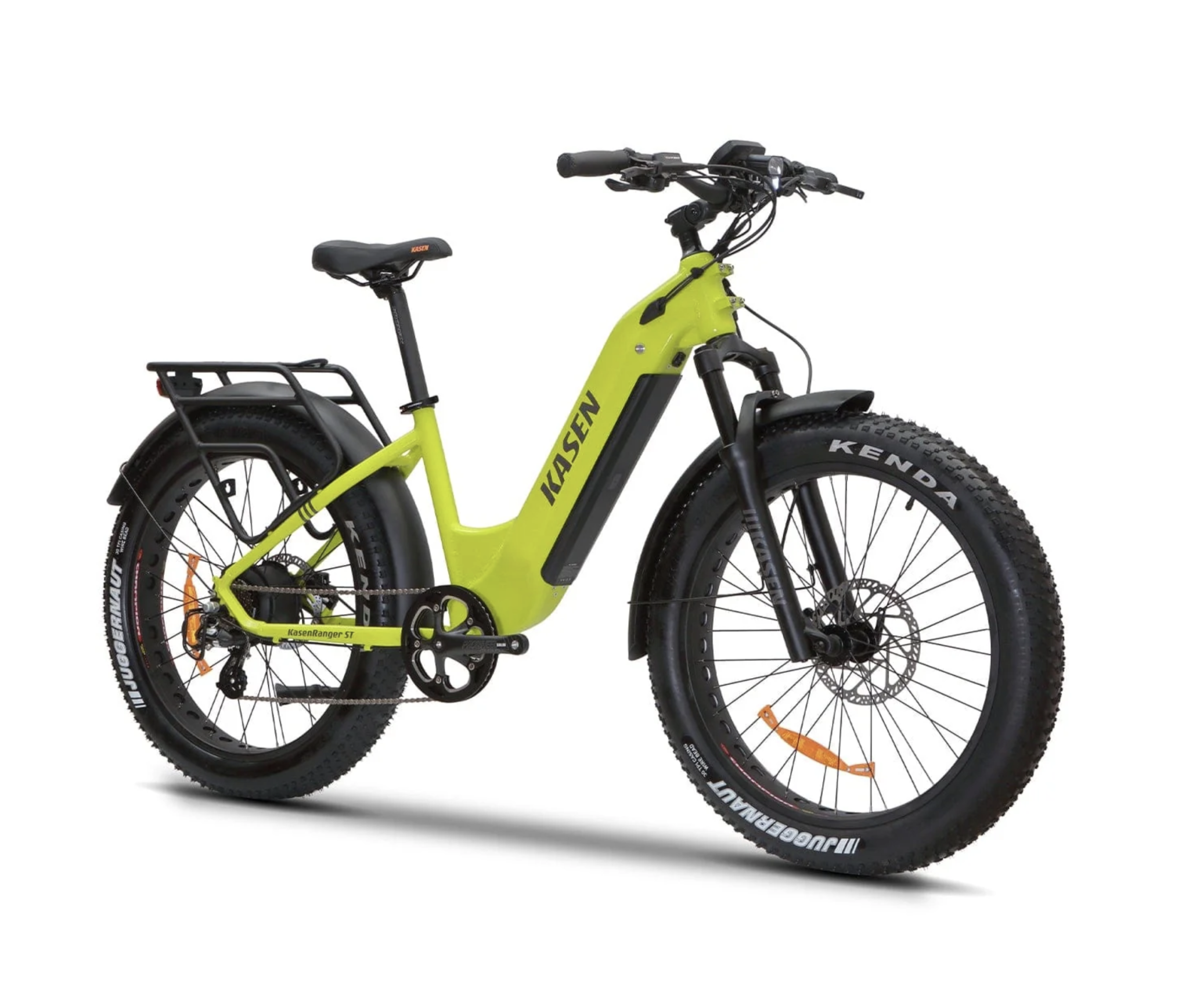

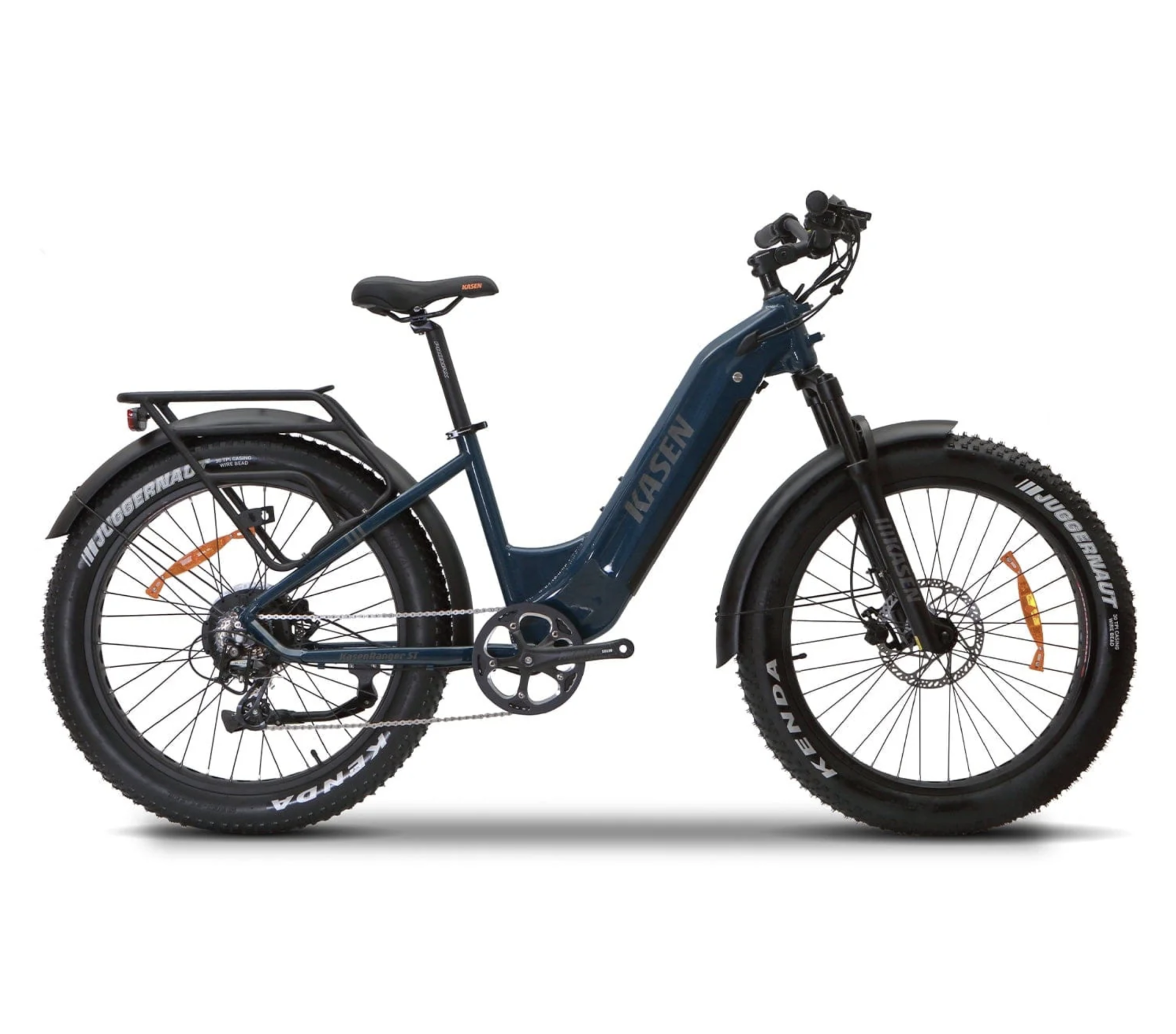

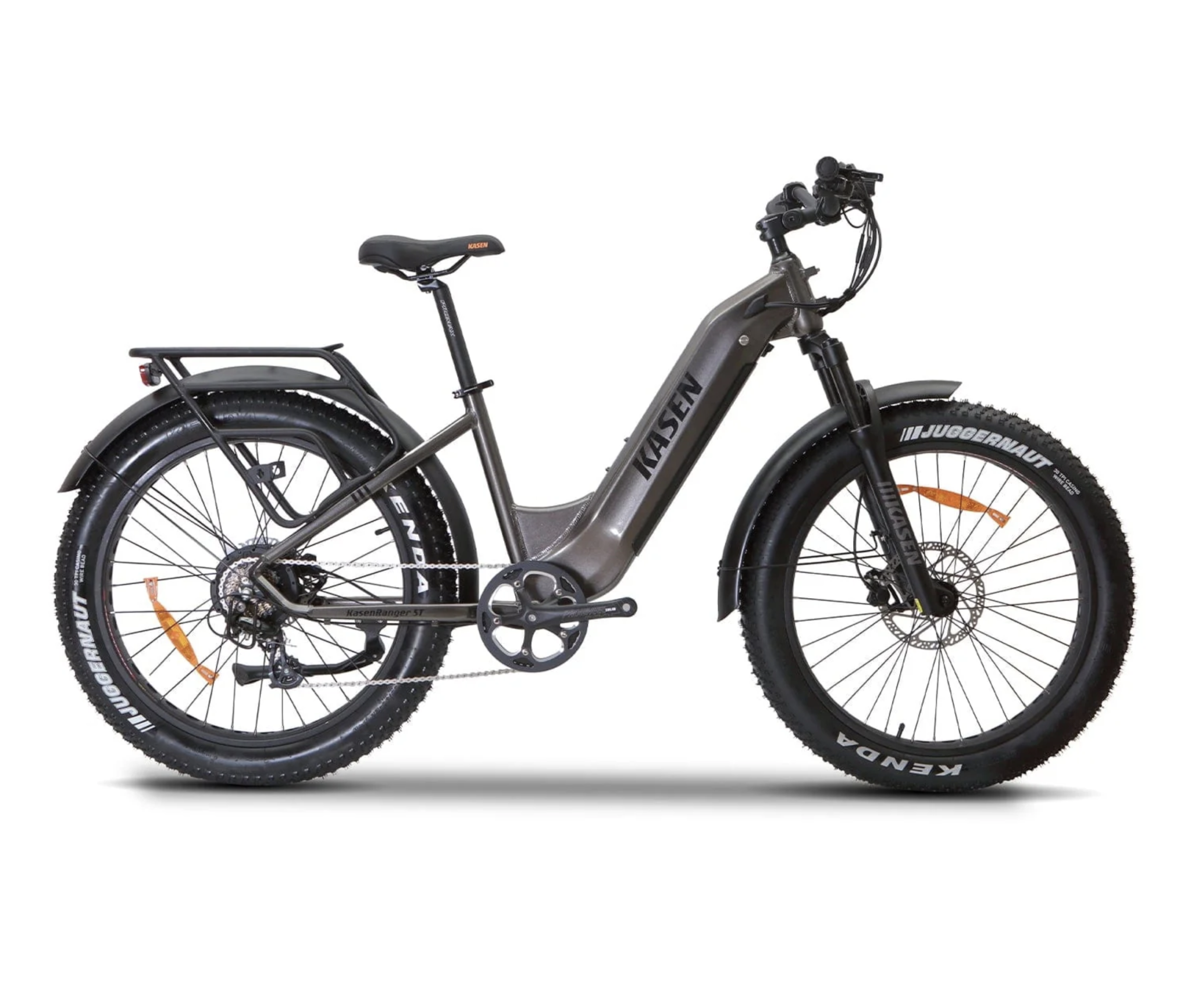

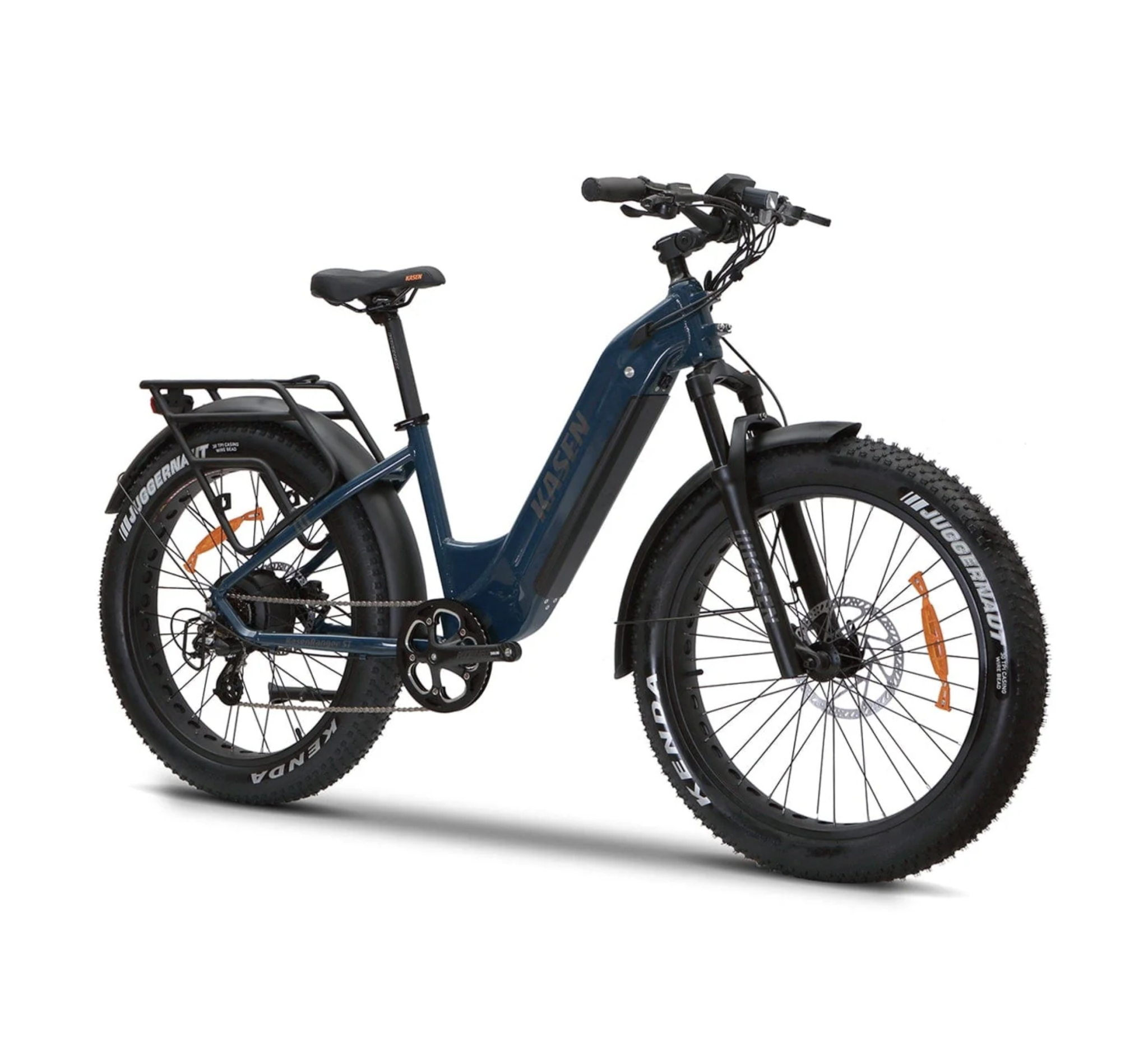

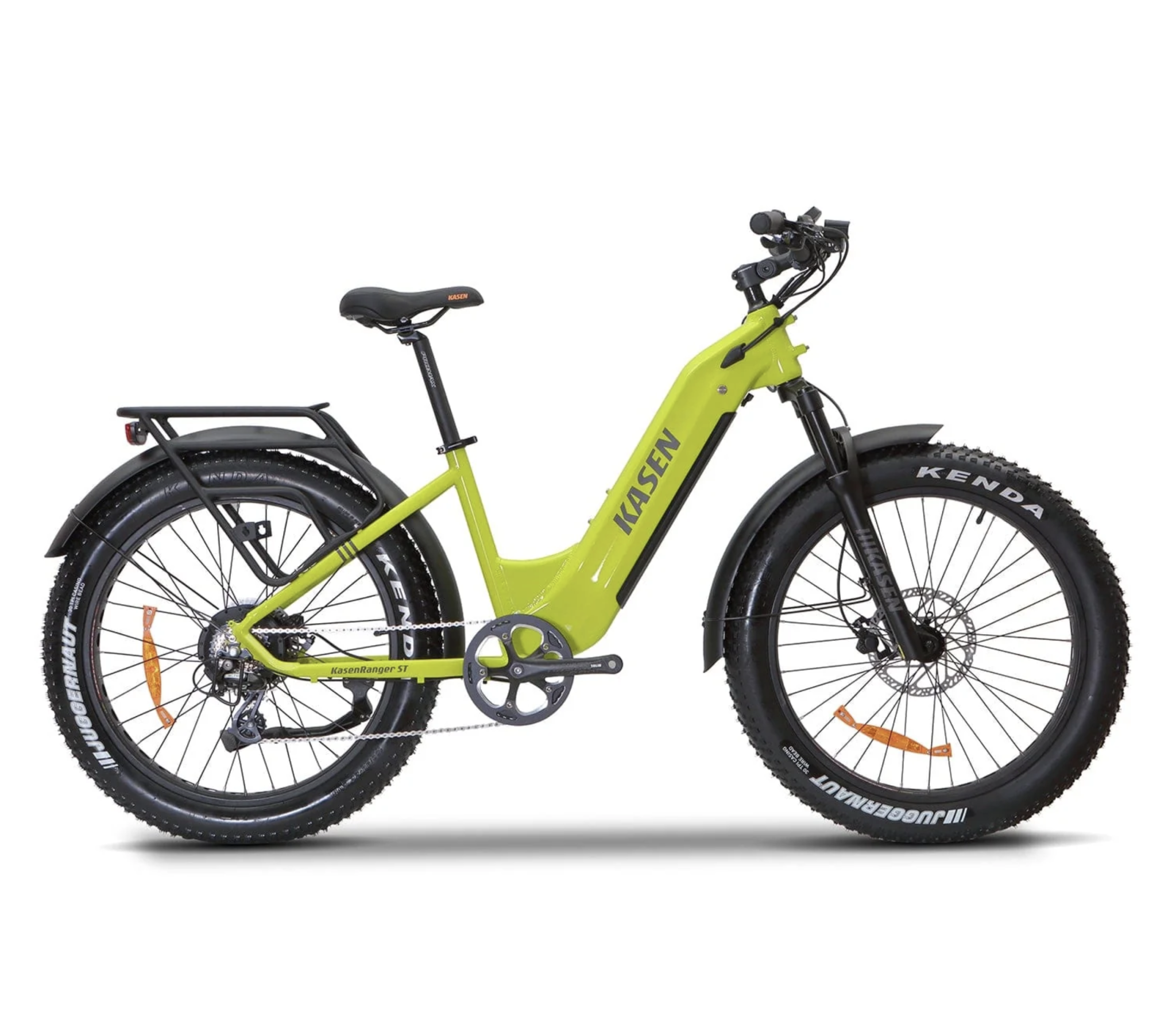

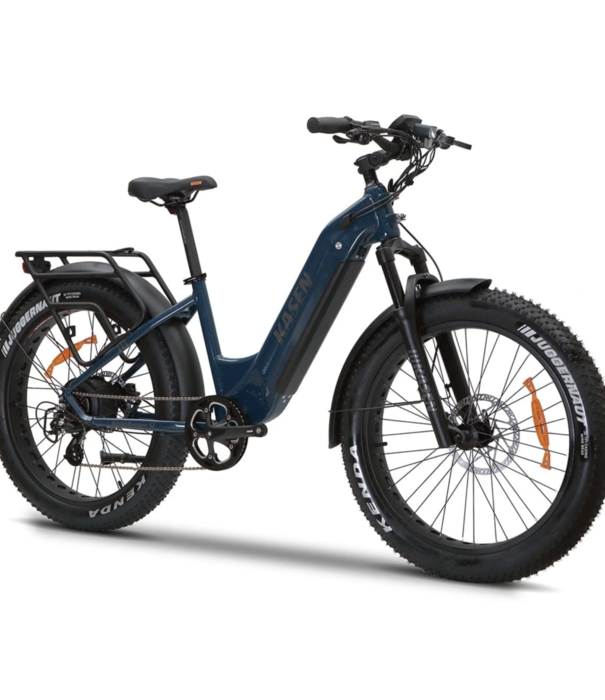

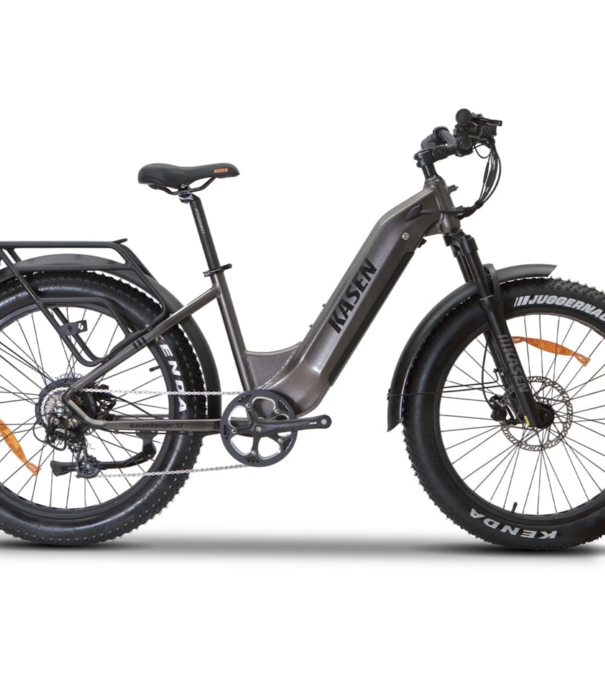

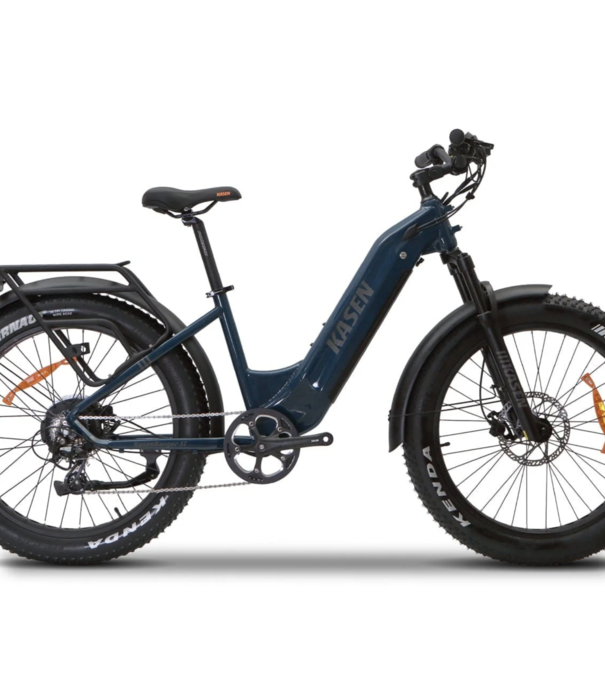

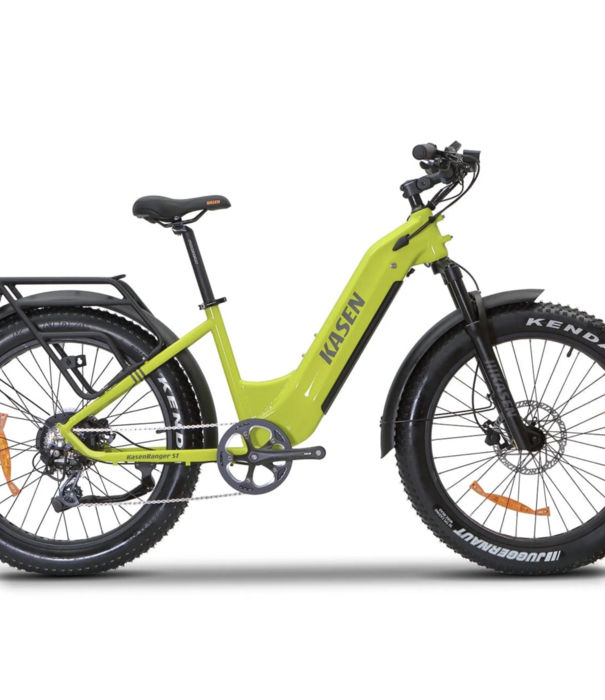

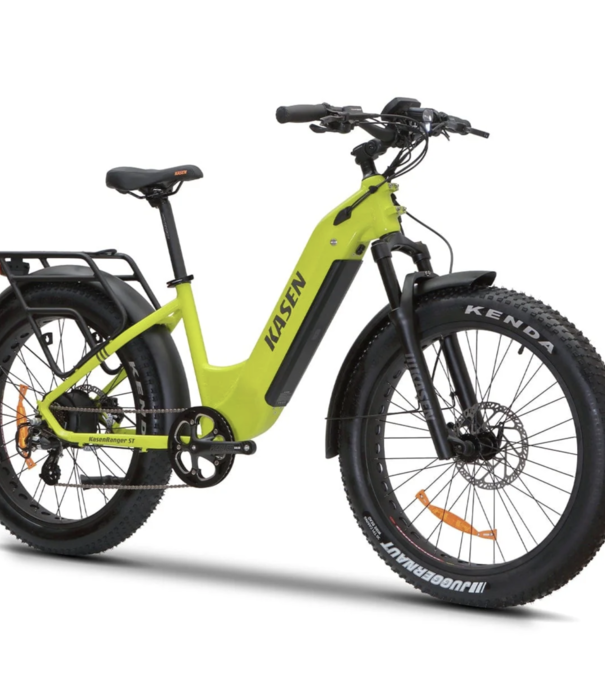

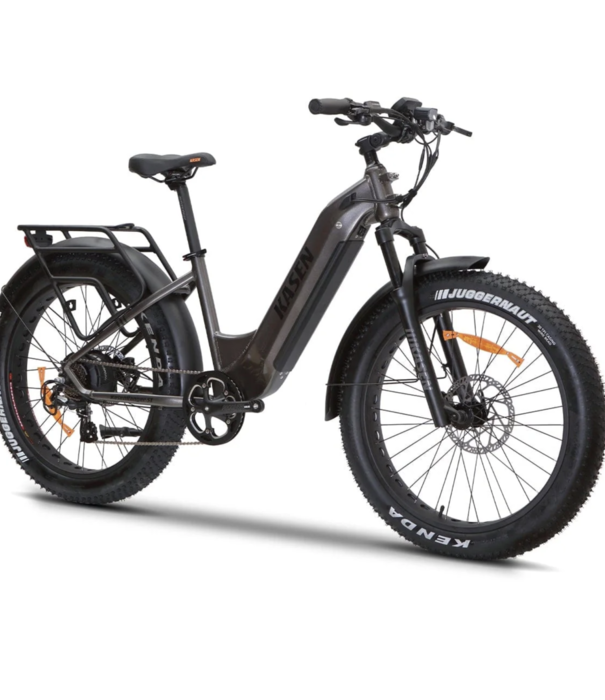

KASEN - RANGER STEP THRU 15AH 1000W

$1,999.00
Excl. tax

The rating of this product is 0 out of 5

(0)
Out of stock
Add to wish list Add to wish list

TECHNICAL SPECS

  •  MOTOR  1250W (Peak) 1000W (Sustained), 48V Brushless Rear Hub BAFANG Motor
  •  BATTERY Removable Internal Lithium-ion 48V ,15AH (720WH)/20AH (960WH) SAMSUNG
  •  CHARGER 48V 3.0 Amp Smart Charger, 4-7 Hour Charge Time
  •  DISPLAY CloudDrive CDC6-PR02 Backlit LCD Display with USB
  •  CONTROLLER 48V, 1000W Frame-integrated Controller
  •  THROTTLE Thumb Throttle
  •  PEDAL ASSIST Intelligent 5 level pedal assist with 24 magnet cadence sensor
  •  Head Light  High output 80 LUX LED Headlight
  •  Wiring Water resistant connectors and wiring harness

COMPONENTS

  • FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery
  • FORK Hydraulic Fork, 100mm Travel, with lockout and preload adjustment
  • BRAKE Tektro 203mm Front & 180mm Rear Hydraulic Disc Brake
  • SPEED GEARS Shimano 7 Speed Shifter
  • CASSETTE Shimano 14T-28T Cassette
  • CHAIN WHEEL KMC Rust Resistant Chain
  • CRANKSET Prowheeel 46T 175mm Crankset
  • HANDLEBARS  Aluminum 31.8mm, 700mm Back Sweep 6 Degree
  • GRIPS Durable Ergonomic Grips
  • STEM Aluminum Alloy, 0-60 Degree Rise, 108mm Length, 31.8mm
  • WHEEL RIM Double Wall Aluminum 36h Front & Rear
  • TIRES KENDA 26X4.0 Front & Rear Tires
  • SADDLE Kasen Comfortable
  • PEDALS Wellgo Aluminum Alloy pedals
  • REAR RACK  55lbs Rated Loading Weight with Pannier Side Mount
  • MUDGARD   Full coverage front and rear
  • SEAT POST   Aluminum Alloy 31.8mm 350L
  • SEAT CLAMP Quick Release

PERFORMANCE

  •  SPEED Up to 28 MPH on Pedal Assist and 25 MPH on Throttle
  •  RANGE  45-55 miles
  •  CHARGE   4-7 Hour Charge Time
  •  WEIGHT 80 LBS
  •  WEIGHT LIMIT Maximum payload capacity 275 lbs
